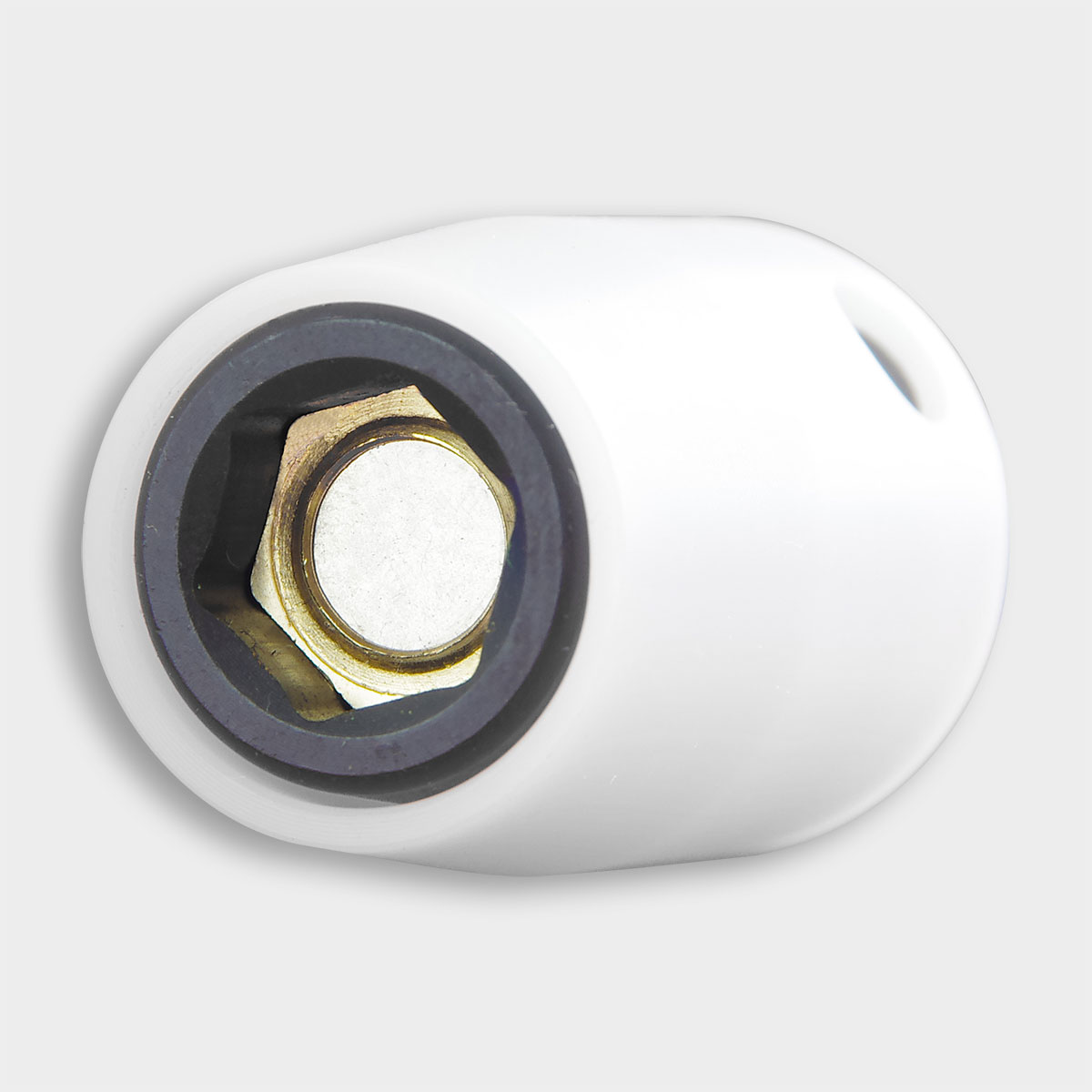

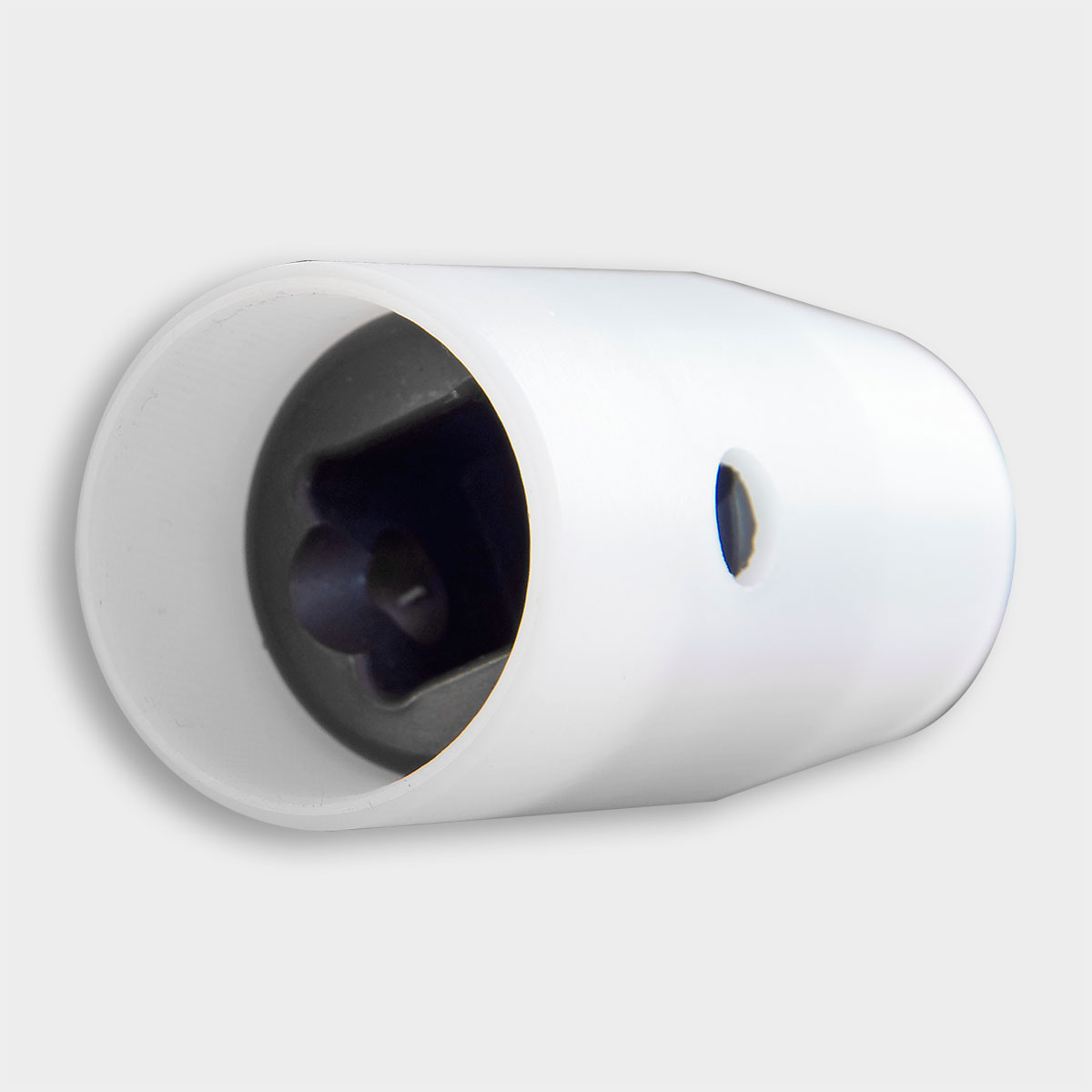

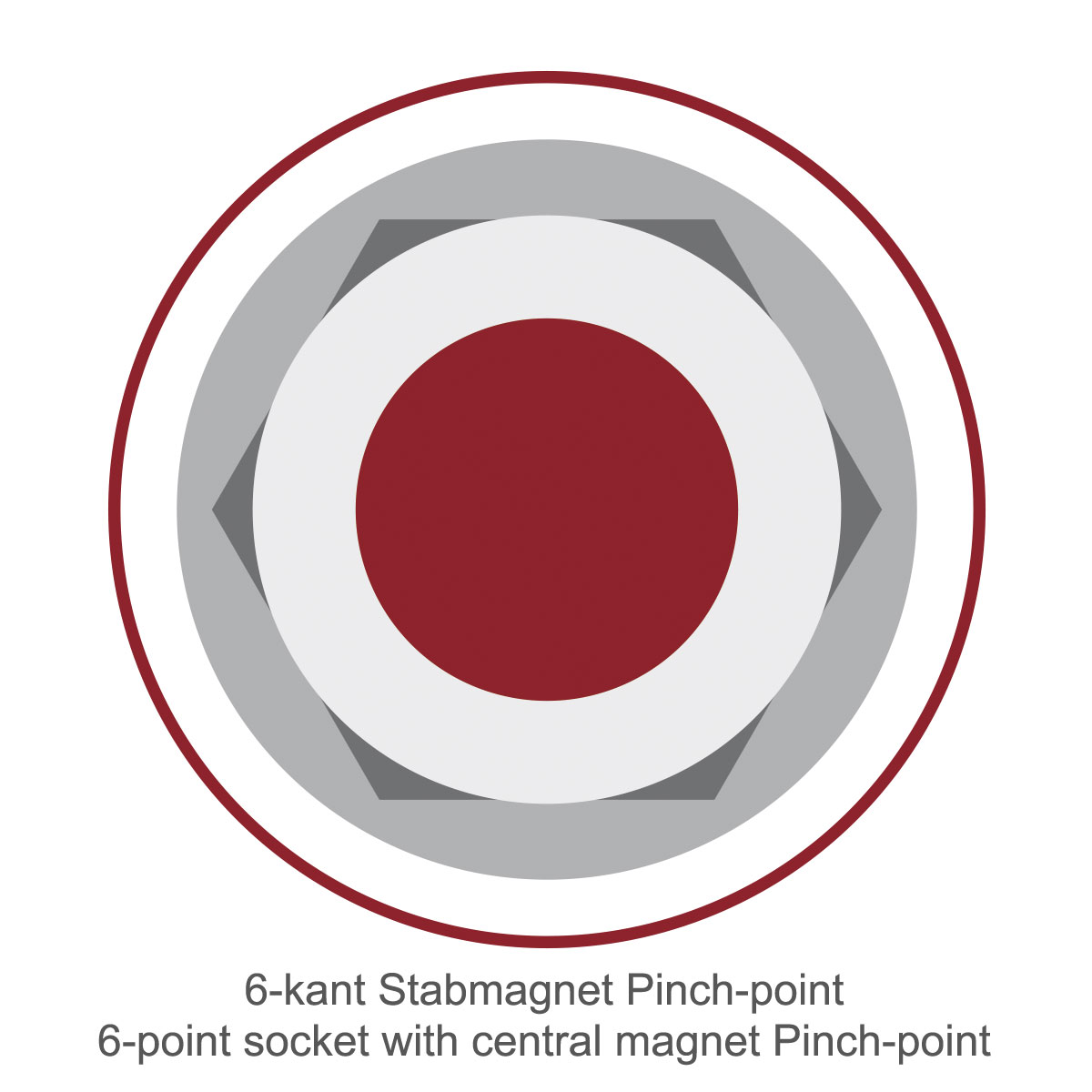

Steckschlüssel mit Stabmagnet L32, Pinch-point
covertec Steckschlüssel mit 3/8" Antrieb für 6-kant Schraubenköpfe, Länge 32 mm mit Pinch-point und Stabmagnet.

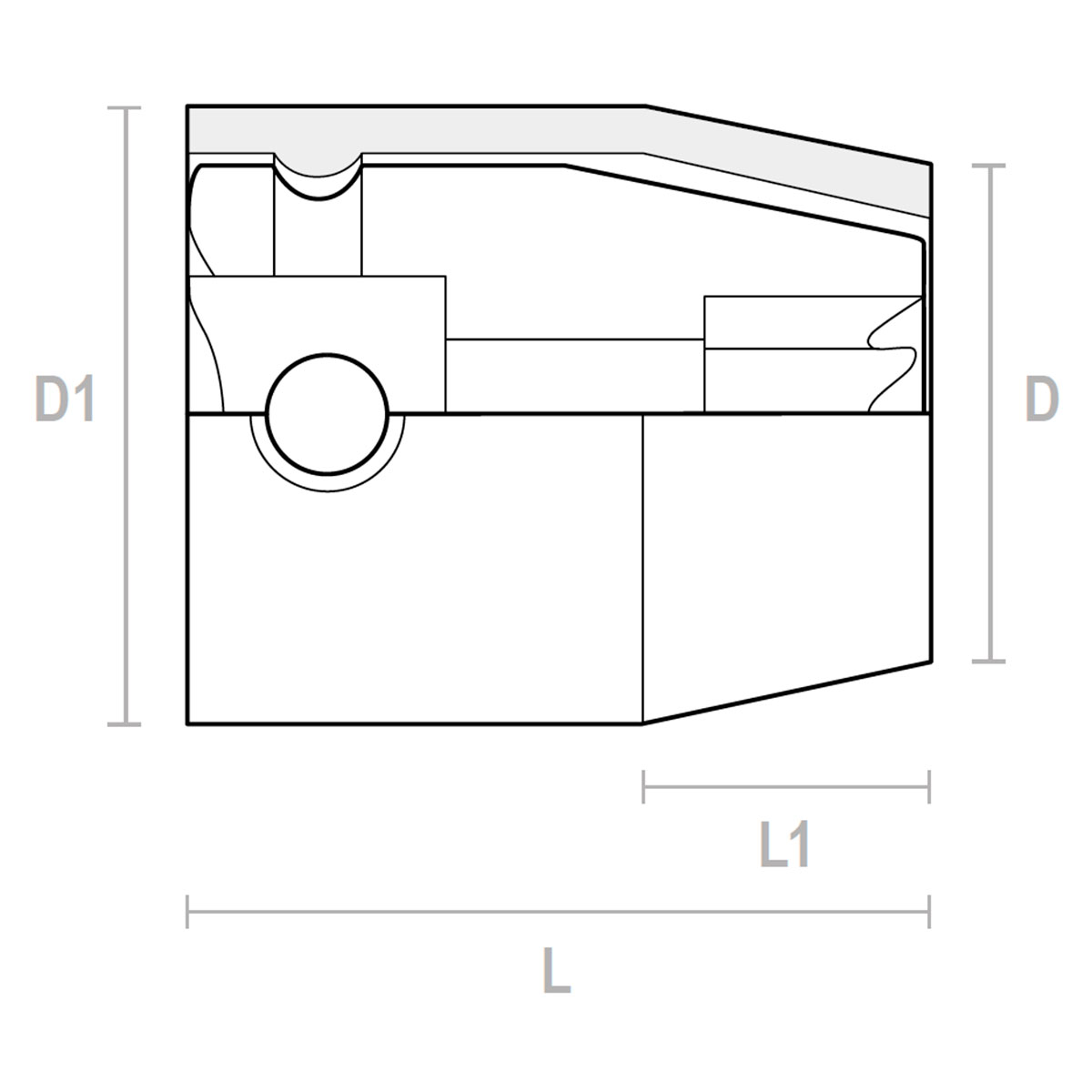

Technische Daten & Ausführungen
Code | Antrieb | Abtrieb 1 | Länge 1 | Länge 2 | D1 | Magnetart | covertec /art | Ersatzhülsen | Schraubenkopf | D (Abtrieb) | |
---|---|---|---|---|---|---|---|---|---|---|---|
9041063-1-pp | 3/8`` | SW8 | 32 | 11 | 22 | Stabmagnet | Pinch-point | 9051063-1-pp | 6-kant | 16,5 |
|
9041064-1-pp | 3/8`` | SW9 | 32 | 11 | 22 | Stabmagnet | Pinch-point | 9051064-1-pp | 6-kant | 18 |
|
9041006-1-pp | 3/8`` | SW10 | 32 | 14 | 22 | Stabmagnet | Pinch-point | 9051006-1-pp | 6-kant | 19 |
|
9041048-1-pp | 3/8`` | SW11 | 32 | 16,5 | 22 | Stabmagnet | Pinch-point | 9051048-1-pp | 6-kant | 20 |
|
9041049-1-pp | 3/8`` | SW12 | 32 | 32 | 22 | Stabmagnet | Pinch-point | 9051049-1-pp | 6-kant | 22 |
|
9041007-1-pp | 3/8`` | SW13 | 32 | 32 | 25 | Stabmagnet | Pinch-point | 9051007-1-pp | 6-kant | 25 |
|
9041008-1-pp | 3/8`` | SW14 | 32 | 32 | 25 | Stabmagnet | Pinch-point | 9051008-1-pp | 6-kant | 25 |
|
9041009-1-pp | 3/8`` | SW15 | 32 | 32 | 25 | Stabmagnet | Pinch-point | 9051009-1-pp | 6-kant | 25 |
|
9041010-1-pp | 3/8`` | SW16 | 32 | 32 | 27 | Stabmagnet | Pinch-point | 9051010-1-pp | 6-kant | 27 |
|
9041011-1-pp | 3/8`` | SW17 | 32 | 32 | 28 | Stabmagnet | Pinch-point | 9051011-1-pp | 6-kant | 28 |
|
9041012-1-pp | 3/8`` | SW18 | 32 | 32 | 29,5 | Stabmagnet | Pinch-point | 9051012-1-pp | 6-kant | 29,5 |
|
9041013-1-pp | 3/8`` | SW19 | 32 | 32 | 30,5 | Stabmagnet | Pinch-point | 9051013-1-pp | 6-kant | 30,5 |
|
Anwendungsgebiete
Vielfältige Einsatzmöglichkeiten
Zuhause in fast jeder Montagelinie. Zuverlässig mit hohen Standzeiten und dem covertec-Schutzmechnismus.
